Difference between Capacitor and Ultracapacitor

Key Difference: Capacitor is a device that is used to store an electric charge. It stores a charge in the form of an electrostatic field. An ultracapacitor is also known as a supercapacitor or double-layer capacitor. An ultracapacitor tends to differ from an ordinary capacitor due to its very high capacitance. Ultracapacitors have characteristics intermediate between general capacitors and batteries.

Capacitor is a device that stores an electric charge. It can be referred to as an arrangement of conductors. A capacitor stores electrical energy directly as an electrostatic field is created between two metal "plates". A capacitor’s discovery is associated with the Leyden jar. It was partially filled with water and stoppered with a cork. The cork had a way to insert a wire tightly through the centre of it. When the wire was connected to some source of static electricity, the jar gets charged.

Any conductor that came in contact with or closer to the wire discharged the Leyden Jar. The concept of capacitor originated and flourished from this concept. Now, it has become an important electronic component in the circuits. A capacitor stores electrical charge and is capable of discharging it whenever required. It blocks DC (Direct Current) and allows AC (Alternating Current) to pass through it. Some of the basic functions of capacitors include – DC blocking, coupling, filtering (tone control), smoothing (work on ripples and noise in power supplies), timing of circuits (like in the case of low frequency oscillators) and storing energy.

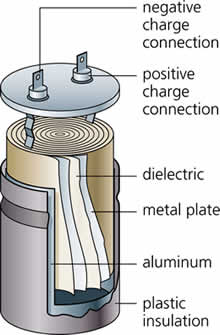

Construction - a capacitor is generally constructed using two metal plates or metal foils separated by an insulator called a dielectric material. Any non-conducting substance can be used as a dielectric material. However, porcelain, mylar, teflon, mica, cellulose are generally preferred. Thus, a capacitor can be defined as an arrangement of two conducting surfaces separated by a dielectric medium. A capacitor is defined by the type of dielectric and electrode material selected. It also defines the application of the capacitor. It can be connected in either series or parallel with an inductor in order to construct a resonance oscillating circuit for inductive heating.

An ultracapacitor is an innovation in the field of capacitors. The main development of the ultracapacitor related research originated in the work of Standard Oil of Ohio Research Center (SOHIO) in the early 1960s. The main difference between a capacitor and an ultracapacitor is that- it uses a very small charge separation distance that is literally equivalent to the dimensions of the ions within the electrolyte. Due to the carbon technology, these capacitors are able to create a very large surface area. Thus, it has a very high capacitance than an ordinary capacitor. These capacitors have very high energy densities in comparison to common capacitors. They are quite beneficial for hybrid vehicles.

Comparison between Capacitor and Ultracapacitor:



Capacitor

Ultracapacitor

Definition

In capacitors, energy is stored in their electric field.

An ultracapacitor is also known as an supercapacitor or double-layer capacitor. An ultracapacitor tends to differ from an ordinary capacitor due to its very high capacitance.

Components

Basic Design –

Two metal plates (or conductors), an insulator to separate the metal plates. Insulator can be air, ceramic, etc.



Basic Design –

Two metal plates (coated with activated carbon), immersed in an electrolyte that is made of positive and negative ions dissolved in a solvent.

A membrane which separates positive and negative plates.

Energy Density

Comparatively low

Comparatively very high

Dielectric materials

Dielectric materials like ceramic, polymer films or aluminum oxide are used for the separation of the electrodes.

Activated carbon is used as a physical barrier between the electrodes so that when an electrical charge is applied to the material, a double electric field is generated. This electric field acts like a dielectric.

Cost

Comparatively cheap

Comparatively expensive

Advantages

  • Less Battery Drain – A car’s battery does not deplete due to a capacitor.
  • Powerful stereos- Amplifiers and subwoofers working mechanism is based on the capacitors
  • Less Damaged equipment – It helps to avoid the excessive drawing of power.



  • High energy storage - Compared to conventional capacitor technologies, it possesses higher energy density.
  • Low Equivalent Series Resistance (ESR) - Compared to batteries, they have a low internal resistance. Thus, they provide high power density capability.
  • Fast charge/discharge – They can be charged and discharged without damaging the parts.
  • Applications
  • High Voltage Electrolytic used in power supplies.
  • Axial Electrolytic - Lower voltage, smaller size for general purpose where large capacitance values are needed.
  • High Voltage disk ceramic - Small size and capacitance value, excellent tolerance characteristics.
  • Metalised Polypropylene - Small size for values up to around 2µF, good reliability.
  • Sub−miniature multi layer ceramic chip (surface mount) capacitor. Relatively high capacitance for size achieved by multiple layers. Effectively several capacitors in parallel.
  • CMOS RAM
  • CMOS micro computer
  • Micro computer, RAM
  • Driving motor
  • IC for Clocks
  • Driving motor
  • Power source of toys, LED, buzzer
  • High current supply for a short amount of time
  • Hybrid vehicle

Image Courtesy: news.softpedia.com, mccormicksys.com
