Difference between LAN and Broadband

Key Difference: LAN stands for local area network.  It is an assembly of computers and associated devices which are interconnected. LAN is implemented in a relatively small area. On the other hand, Broadband refers to a high speed internet connection. In broadband, multiple data channels are used on a single wire. It is a high bandwidth type of connection.

LAN stands for local area network.  It is an assembly of computers and associated devices which are interconnected. LAN is implemented in a relatively small area, like within a building or a small group of buildings. It is regarded as the most common form of network.

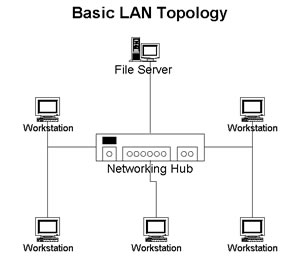

LAN is capable of providing high speed data transfer rates. One of the key characteristics of LAN is that it provides full time connectivity to the local services. The transmission media plays an important role in setting the connection. Cabling is generally used as a primary transmission medium. The transmission of LAN can be categorized into – Unicast, Multicast and Broadcast transmission. Bus, Ring and Star are common topologies for a LAN network.

There are three common LAN technologies -

Ethernet/IEEE 802.3

Token Ring/IEEE 802.5

FDDI / CDDI

Broadband refers to a high speed internet connection. In broadband, multiple data channels are used on a single wire. Typically, it uses some form of frequency or wave division multiplexing to achieve the desired results. It is a high bandwidth type of connection. Due to its high access speed, it is often preferred over the traditional telephone and modem.

According to the Recommendation I.113 of the ITU Standardization Sector, broadband is a “transmission capacity that is faster than primary rate Integrated Services Digital Network (ISDN) at 1.5 or 2.0 Megabits per second (Mbits)”. The information can be easily sent and downloaded by using broadband, as it takes very little time to complete the tasks. It is also known as 'the fast internet'. One can acquire the facility by telephone cable, super fast fibre optic cable or via satellites.

The underlying architecture and concept was initially defined by DSL Forum TR-025 in November 1999. DSL Forum TR-059 in September 2003 further extended the concept by adding quality of service (QoS) to deliver voice over IP (VoIP) along with the data. Due to the high speed of broadband, websites, text, graphics, etc. and be streamed in real time. It is important to mention that organization have their own way to define broadband, and thus one may encounter with numerous definitions of the term. However, the term is associated with a high rate of data transmission. Broadband has revolutionized the experience of internet access. Following high speed transmission technologies are used in broadband –

  • Digital Subscriber Line (DSL)
  • Cable Modem
  • Fiber
  • Wireless

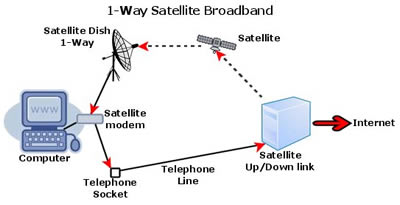

  • Satellite
  • Broadband over Powerlines (BPL)

Comparison between LAN and Broadband:



LAN

Broadband

Definition

LAN stands for local area network.  It is an assembly of computers and associated devices which are interconnected. LAN is implemented in a relatively small area.

Broadband refers to a high speed internet connection. In broadband, multiple data channels are used on a single wire. It is high bandwidth type of connection

Advantages

  • Resources like hardware, files and software are easily shared
  • Cost of setting up the network is usually low.
  • Flexibility
  • Low error rates and reliability of operation
  • Simple maintenance
  • Facility for centralized backups
  • Data transfer rate are high.
  • Full time connectivity
  • Phone line remains unaffected
  • Graphics, music, videos, etc. are downloaded at a very fast rate
  • Instant messages can be done
  • High speed interactive games can be played.
  • Internet radio, streaming video and voice-over-ip, phone calls, etc. are received as uninterrupted real time services.

Type

Network

Bandwidth characteristics of a transmission medium

Transmission medium

Wired or wireless

Coax, optical fiber, twisted pair or wireless

Characteristics

  • It is a high capacity network — 230.4Kbps (thousand bits per second) to 10Gbps (billion bits per second).
  • It works within a finite distance in a limited geographic area.
  • Generally, cabling is employed for transmission
  • It is owned by a single organization.
  • Can be used to refer both actual and theoretical throughput
  • Download content at speeds of at least 4 megabits per second (Mbps) - Defined by  Federal Communications Commission
  • Upload content at speeds of at least 1 Mbps over the broadband provider’s network (4 Mbps/1 Mbps) -  Defined by  Federal Communications Commission
  • No precise definition

Image Courtesy: kristin-itgs.wikispaces.com, broadbandwatchdog.co.uk
